XIAMEN JINHUAXIA ENGINEERING MACHINERY CO., LTD
|
block handler forklift loader
| Payment Terms: | T/T,L/C,D/A,D/P,WU |
| Place of Origin: | Fujian, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1.Engine: WEICHAI Power,Model:WD10G240E21,Rated power: 175Kw/h.
2. Never fractured frame.
3. with two anti-skid chains. Front tire with "ADVANCE" br

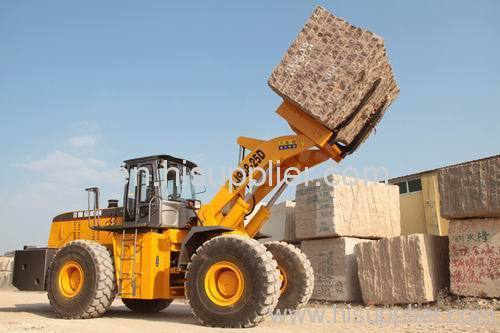

XJ968-25D block handler forklift loader
Description | Specifications | Unit | ||||||||
Rated power | 175 | kw/h | ||||||||
Overall dimension(L×W×H) | 9000×2990×3650 | mm | ||||||||
Max. lifting height | Forks at level | 3450 | mm | |||||||
Take back forks | 3750 | |||||||||
Operating weight | 30000 | kg | ||||||||
Max. Limited Load | 25000 | kg | ||||||||
Bucket capacity | 2.7 | m3 | ||||||||
Dimensions of fork | (L×W×H) | 1400×250×110 | mm | |||||||
Distance of fork | ≤1350 | mm | ||||||||
Rated loading capacity | 25000 | kg | ||||||||
Turning angle | ±35° | |||||||||
Turning radius | 7735 | mm | ||||||||
Wheel base | 3700 | mm | ||||||||
Tread | 2300 | mm | ||||||||
Min. Ground clearance | 430 | mm | ||||||||
Unloading angle | 18° | |||||||||
Haul location height(Ground clearance of material) | 300 | mm | ||||||||
Fuel tank capacity | 380 | L | ||||||||
Hydraulic fuel tank capacity | 380 | L | ||||||||
Specification of tyre | Front wheel | "Advance" high-load three stars 26.5 steel wire tires(tire load more than 60 tons) | ||||||||
Rear wheel | "Advance" 26.5 strenghening tires. | |||||||||
